Advanced Resins for 3D Printing.
In recent years, 3D resin has become one of the most revolutionary materials in the manufacturing sector. Its ability to offer high resolution, dimensional accuracy, and industrial-quality surface finishes has driven its use in fields as diverse as engineering, dentistry, jewelry, rapid prototyping, and artistic creation. Thanks to advancements in formulations, today’s 3D resins allow the manufacture of parts with mechanical properties comparable to those of injection molding, opening up new possibilities in design, customization, and production.
In 3D printing using DLP and LCD technologies, the quality of the parts depends directly on the dimensional stability, curing accuracy, and chemical resistance of the resin used. Within this field, polyurethane resins have established themselves as the benchmark for technical, artistic, and industrial applications.
KLEBENRAD presents a range of solutions designed to optimize the 3D printing workflow: from model generation to post-curing and final cleaning. Among them, the KLEBENRAD PU 80 resin stands out—a high-performance polyurethane resin—along with KLEBENRAD 3D CLEANER, a biodegradable cleaner that safely replaces traditional solvents.

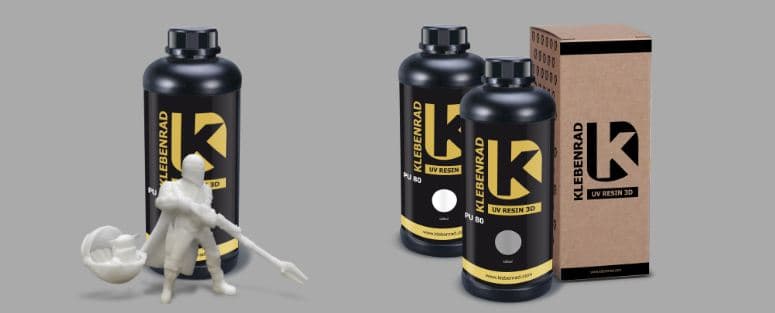

KLEBENRAD PU 80 – Rigid polyurethane resin for DLP/LCD 3D printing.
KLEBENRAD PU 80 is a highly stable, low-shrinkage printing material. It is formulated for printers with a 405 nm light source. This 3D resin guarantees uniform polymerization, high mechanical and chemical resistance, and a flawless surface finish.
Main advantages:
- Compatible with most DLP and LCD printers.
- High printing speed and excellent image definition.
- Very low toxicity and no volatile solvents.
- Easy cleaning with isopropanol or KLEBENRAD 3D CLEANER.
- Available in several standard colors.
- Excellent chemical resistance after post-curing.
- Dimensional stability and minimal yellowing over time.
Physical and Mechanical Properties (180 min cured):
| Description | Value |
| Tensile Modulus | 2078,92 N/mm² |
| Tensile Strength | 45,48 MPa |
| Elongation at Break | 3,81 % |
| Color (L, a, b) | 8.49, -4.79, 5.1 |
| Gloss | 6 u.b. |
Properties after Accelerated Aging (10 weeks ≈ 25 years):
| Description | Value |
| Tensile Modulus | 1291,42 N/mm² |
| Tensile Strength | 35,76 MPa |
| Elongation at Break | 4,33 % |
| Color (L, a, b) | 3.12, -0.78, 17.23 |
| Glos | 9 u.b. |
Recommended Printing Parameters:
Layer Thickness: 50–100 microns
- Exposure Time: 5–10 seconds per layer.
- Initial Layers: Minimum 6 layers of 50 µm with 30 seconds of exposure time.
- For large parts: Increase initial layers.
- Minimum Raise/Lower Distance: 10 mm.
- Waiting Time Before Exposure: 2 seconds.
The resin maintains stable mechanical behavior even after accelerated aging, offering durability, precision, and an impeccable aesthetic finish. It is ideal for functional prototypes, industrial components, decorative models, or parts subjected to moderate mechanical stress.
KLEBENRAD 3D CLEANER – Eco-Friendly Cleaning for Parts and Equipment.
KLEBENRAD 3D CLEANER is a biodegradable, solvent-free cleaner formulated to remove uncured resin residue without generating toxic fumes. It facilitates the cleaning of parts and tools, extending the lifespan of equipment and reducing environmental impact.
Its advanced composition allows for the effective dissolution of resin residue while maintaining operator safety.
